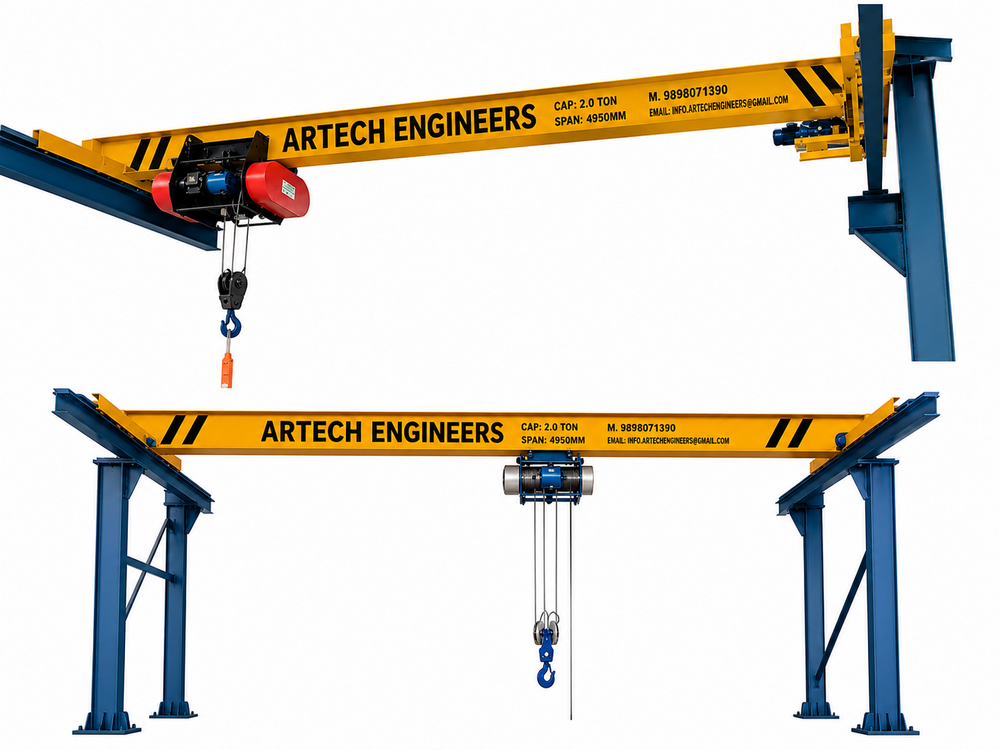

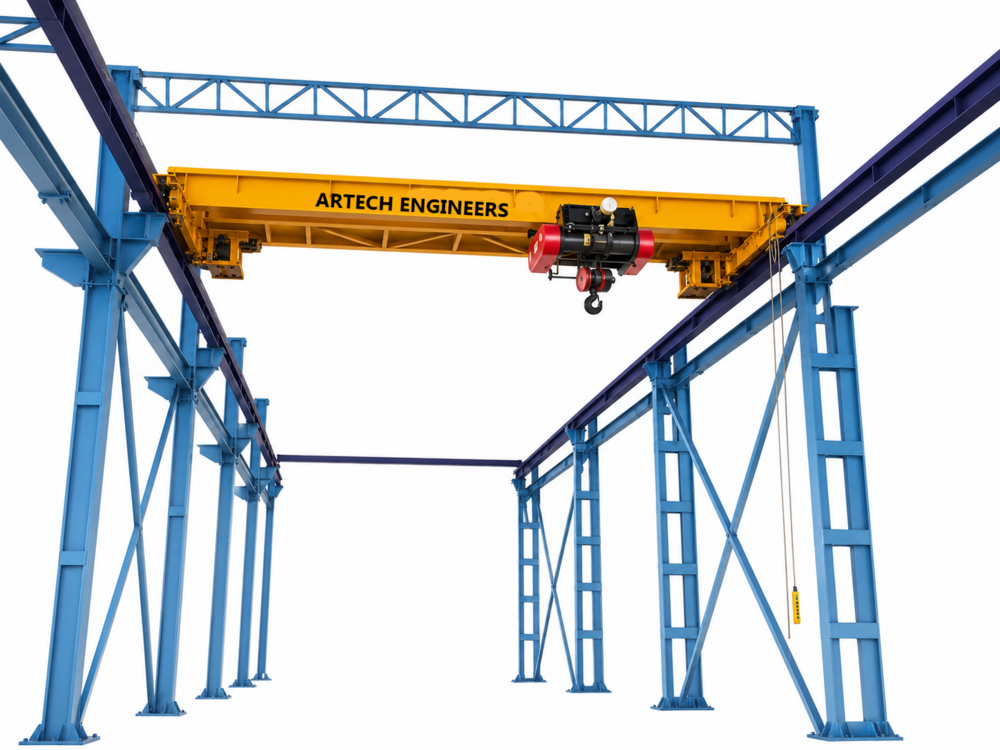

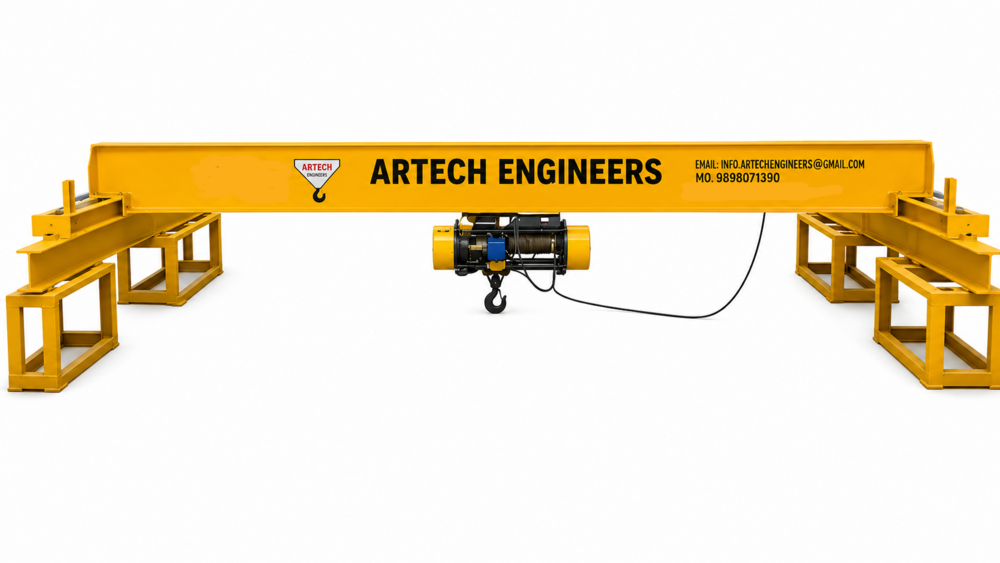

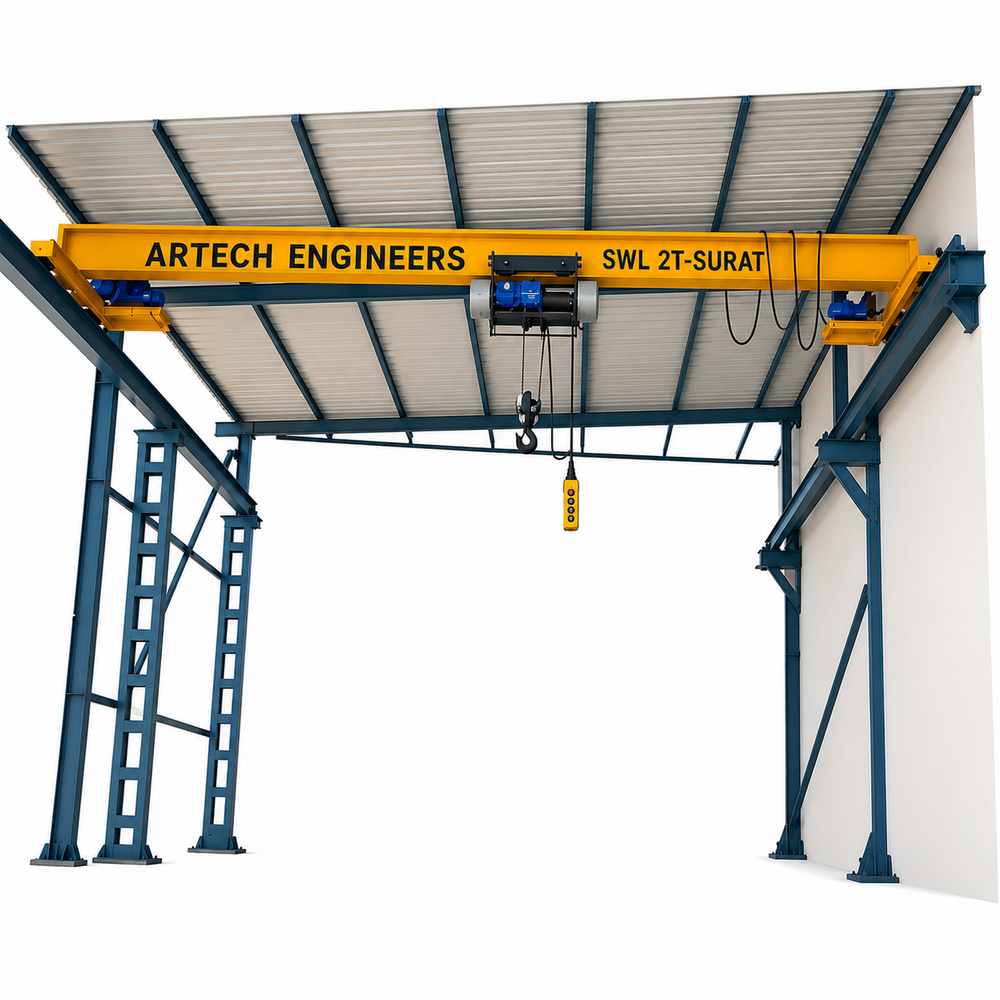

Single Girder EOT Cranes

Name: Single Girder EOT Cranes
Brand: ARTECH ENGINEERS
Price: 500000.00 INR
Availability: InStock

Price 500000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Single Girder EOT Cranes Specification

Trolley Travel Speed
Up to 15 m/min

Crane Total Weight
As per model specification

Condition
New

Crane Traveling Speed
Up to 20 m/min

Feature
Durable, Robust construction, Easy Operations

Power Source
Electric

Crane Type
Single Girder EOT Crane

Span Length
Up to 30 meters (customizable)

Loading Capacity
Up to 20 Ton

Lifting Time
Depends on application and model

Lifting Capacity
0.5 to 20 Ton

Lifting Height
Up to 15 meters (customizable)

Control Type
Pendant Control / Remote Control / Cabin Control

Emergency Stop
Yes

Color
Yellow (standard), other colors on request

Paint Finish
Two coat primer + two coat enamel paint

End Carriage
Machined end carriages with forged wheels

Girder Type
Box type / I-beam type

Installation Method
Top running / Under slung

Protection Class
IP54 / IP55

Braking System
Electro-magnetic / Hydraulic brakes

Operating Voltage
415V, 3 Phase, 50 Hz

Noise Level
< 85 dB at 1 meter

Duty Class
M5 / M7 (as per requirement)

Design Standard
IS 3177 / IS 807

Operating Temperature
-10C to +55C

Hoist Type
Electric wire rope hoist

Single Girder EOT Cranes Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units, Unit Per Year

Delivery Time
1 Months

Single Girder EOT Cranes About

With the aid of our experienced workers, we are devoted towards manufacturing an exquisite range of Single Girder EOT Crane.

Product description:

This crane has specialized bridge girder that is designed to support all stresses that arises due to lateral as well as vertical forces with impact.
The wheels fitted are driven by synchronized drive system that is mounted near each end of the carriage.

Use: These are extensively used in foundry, machine shop and engineering sectors.

Features:

Reduced wheel loads
Low head room standard hoists
Easy to operate
Operated through wireless remote control
Flameproof construction
Low maintenance

Durable Construction & Advanced Safety

Built with robust materials, our single girder EOT cranes feature a strong paint finish, machined end carriages with forged wheels, and reliable braking systems. The inclusion of limit switches and emergency stops enhances operational safety, complementing the cranes IP54/IP55 protection class and low operating noise.

Efficient Performance & Easy Operation

Designed for smooth and efficient operations, our cranes support loading capacities up to 20 tons and span lengths up to 30 meters. Users can choose from pendant, remote, or cabin controls to suit their workflow, ensuring optimal material handling in various industrial environments.

FAQs of Single Girder EOT Cranes:

Q: How is a single girder EOT crane installed in a workspace?

A: Single girder EOT cranes can be installed using either the top running or under slung method depending on the building structure and operational requirements. Installation is carried out by professional technicians to ensure compliance with IS 3177 / IS 807 standards and optimal crane safety.

Q: What types of materials and environments are these cranes ideal for?

A: These cranes are best suited for handling materials in warehouses, factories, and workshops. Their durable construction enables reliable performance in environments with temperatures ranging from -10C to +55C, adapting to demanding industrial conditions.

Q: When should I choose a box type versus an I-beam type girder for my crane?

A: The selection between box-type and I-beam type girders depends on the required span, load capacity, and building design. Box type is preferred for longer spans and heavier loads, whereas I-beam type is suitable for standard capacities and shorter spans.

Q: Where can I source these single girder EOT cranes in India?

A: These cranes are available through authorized distributors, exporters, manufacturers, suppliers, and wholesalers across India. Customization options for color, capacity, span length, and controls are offered as per client requirements.

Q: What is the process for customizing crane specifications?

A: To customize a crane, clients need to specify their desired lifting height (up to 15 meters), span length (up to 30 meters), load capacity (from 0.5 to 20 tons), paint color, and preferred control type. The manufacturer will design and build the crane accordingly, ensuring compliance with relevant standards.

Q: How do the safety and control features benefit daily operations?

A: Safety features such as limit switches, electro-magnetic or hydraulic brakes, and emergency stops ensure secure handling. Operators benefit from versatile control options (pendant, remote, or cabin control) and low noise operation (< 85 dB), promoting a safer and more comfortable work environment.
