Crane Hoist

Name: Crane Hoist
Brand: ARTECH ENGINEERS
Price: 70000.00 INR
Availability: InStock

70000.00 INR/Unit

Get a Price/Quote

Product Details:

Hook Forged Steel Hook
Frequency 50 Hz
Surface Finish Paint Coated
Lifting Speed 8 m/min
Usage Industrial
Power Source Electric
Sling Type Wire Rope
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Crane Hoist Price And Quantity

Minimum Order Quantity 1 Piece
Price 70000.00 INR/Unit

Crane Hoist Product Specifications

Rotating Speed 1440 rpm
Product Type Crane Hoist
Power Source Electric
Capacity 1 Ton
Maximum Lifting Weight 1 Ton
Trolley Push / Geared Trolley
Hook Forged Steel Hook
Maximum Lifting Height 6 meter
Color Orange
Voltage 415 V
Power 1.5 kW
Lift Speed 8 m/min
Insulation Grade Class F
Lifting Speed 8 m/min
Usage Industrial
Surface Finish Paint Coated
Sling Type Wire Rope
Frequency 50 Hz

Control Method Pendant Control
Protection Grade IP54
Duty Cycle S3 (Intermittent) 25%
Noise Level 85 dB(A)
Wire Rope Diameter 8 mm
Phase Three Phase
Mounting Type Top Mounted
Application Workshop, Warehouse, Construction Site
Ambient Temperature -20C to +50C

Crane Hoist Trade Information

Supply Ability 1 Piece Per Week
Delivery Time 1 Week
Main Domestic Market All India

Product Description

ARTECH Wire Rope Hoists is very compact with elegant appearance. Hoist with modular construction which simplifies repairs & maintenance. The various parts like motors, gear box, control panel etc. are easily accessible. The hoist gear train is with precision hob cut helical gears having hardness up to 250 to 300 BHN, running on antifriction type ball/roller bearings housed in sheet metal cover with gasket & lubricated with oil bath lubrications. The rope drum is made from M. S. pipe having machined cut spiral grooves & mounted on self alining ball bearings. The guide is made from ferrous material will be provided for perfect setting of rope drum grooves. Electromagnetic fail to safe type brakes are provided on hoist motion which ensure perfect safety even in case of power failure. Limit switches are provided on hoisting & over lowering.

Optional Features:

Hoist With Higher Capacity & Lift
Hoist With Wire Less Radio Remote
Hoist With VFD for infinitely variable Speeds
Flame Proof Hoist
Low Headroom Hoist
Synchronized Hoist
Hoist with Flexible Trolley for Curved Path

Heavy-Duty Performance for Industrial Lifting

Built with high-quality materials and precision engineering, this crane hoist delivers dependable lifting solutions for industrial operations. The forged steel hook, strong wire rope, and paint-coated surface ensure durability and safety during use. With its capability to handle 1-ton loads and withstand varying temperatures, it seamlessly supports intensive workshop, warehouse, and construction site tasks.

Efficient and Safe Operation

The pendant control system allows operators to maneuver loads precisely while maintaining a safe distance. IP54 ingress protection and Class F insulation enhance reliability by shielding the hoist from dust and moisture. The hoist's noise level of 85 dB(A) is suitable for industrial areas, while the push or geared trolley facilitates easy load movement across the workspace.

FAQ's of Crane Hoist:

Q: How does the crane hoist ensure safety during operation?

A: The crane hoist is equipped with a forged steel hook and robust wire rope, ensuring secure lifting of up to 1 ton. It also features IP54 protection against dust and moisture, and Class F insulation to prevent electrical hazards. Its pendant control enables precise handling, keeping the operator at a safe distance from the load.

Q: What type of environments is this crane hoist suitable for?

A: This hoist is designed for industrial settings such as workshops, warehouses, and construction sites. Its rugged build, IP54 rating, and capability to work in ambient temperatures from -20C to +50C make it suitable for demanding environments where reliability is crucial.

Q: When should I use this hoist's S3 (Intermittent) 25% duty cycle?

A: The S3 (Intermittent) 25% duty cycle indicates that the crane hoist is intended for operations involving intervals of load and rest. This means it should be used for periodic lifting rather than continuous operation, with 25% of each cycle involving active operation and the remainder as rest time, preserving the hoist's longevity.

Q: Where is the hoist typically mounted, and why?

A: This hoist features a top-mounted design, making it ideal for installation on overhead beams or structures. This configuration maximizes available floor space in industrial environments and allows for efficient movement of loads across the workspace using the included trolley.

Q: What is the process for controlling the hoist during lifting operations?

A: The hoist is operated using a pendant control, allowing the user to safely start, stop, and direct movement precisely. This method keeps the operator away from the load path, reducing risk and enabling responsive operation for both lifting and traversing loads horizontally.

Q: How does using this crane hoist benefit industrial operations?

A: Utilizing this electric crane hoist accelerates material handling, improves workplace safety, and minimizes manual labor. Its reliable performance, user-friendly controls, and durable construction contribute to enhanced productivity and operational efficiency in various industrial applications.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Electric Hoist' category

Chain Hoist Price : 30000.0 INR/Piece Minimum Order Quantity : 1 Power Source : Electric Lifting Speed : 5 m/min Sling Type : Chain Usage : Industrial Voltage : 415 V Frequency : 50 Hertz (HZ) Color : Blue

Send Inquiry

Chain Electric Hoist Price : 60000.00 INR/Piece Minimum Order Quantity : 1 Power Source : Electric Lifting Speed : 2.8/7 m/min Sling Type : Other, Alloy Steel Chain Usage : Industrial Voltage : 415 V Frequency : 50 Hz Rotating Speed : 1440 rpm Maximum Lifting Height : 12 m Trolley : With Trolley Lift Speed : 7 m/min Capacity : 1 Ton Hook : Forged Steel Hook Power : 1.5 kW Insulation Grade : F Surface Finish : Paint Coated Maximum Lifting Weight : 1000 kg Product Type : Chain Electric Hoist Color : Red

Send Inquiry

Electric Wire Rope Hoist Price : 30000.0 INR/Piece Minimum Order Quantity : 1 Power Source : Electric Lifting Speed : 8 m/min Sling Type : Chain Usage : Material Lifting Voltage : 415 V Frequency : 50 Hz Rotating Speed : 1440 rpm Maximum Lifting Height : 6 m to 30 m Trolley : Push & Motorized Trolley Lift Speed : 8 m/min Capacity : 1 Ton to 20 Ton Hook : Heavyduty forged hook Power : As per Model Insulation Grade : F Surface Finish : Paint Coated Maximum Lifting Weight : As per Requirement Tonne Product Type : ELECTRIC

Send Inquiry

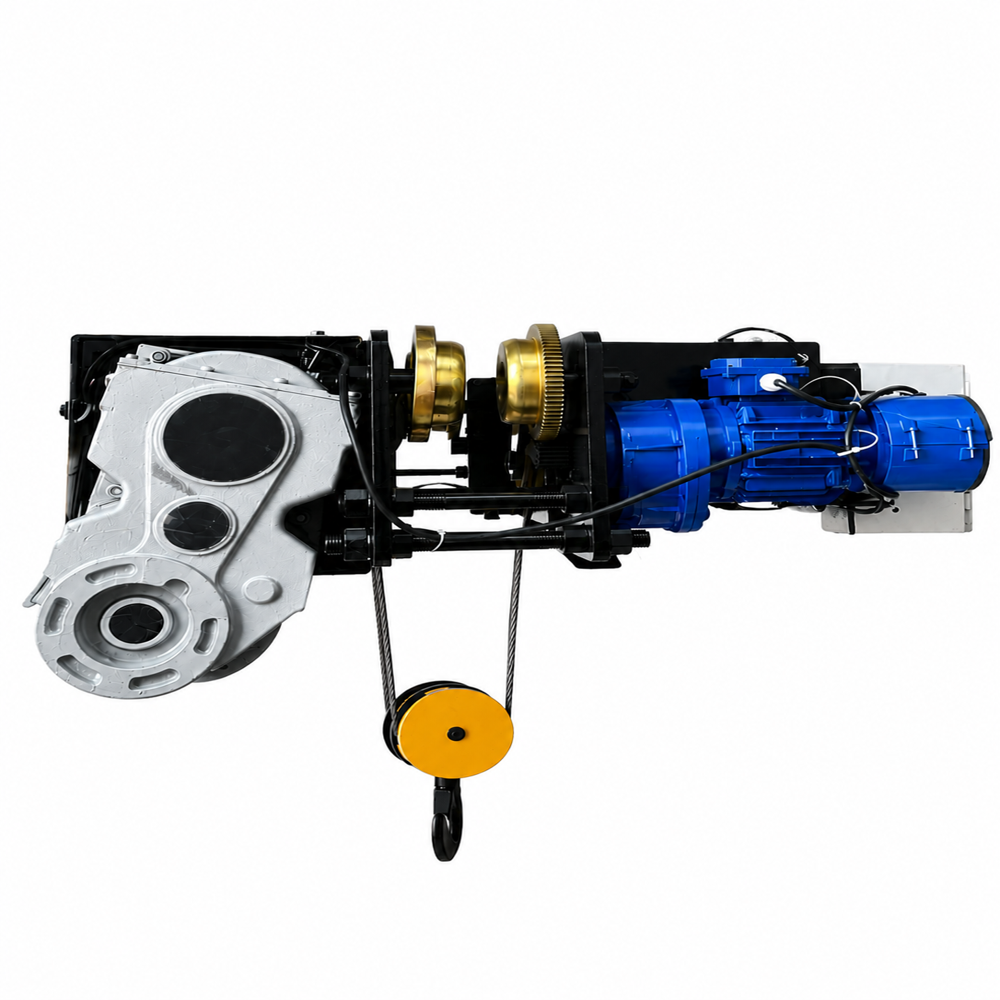

Low Headroom Wire Rope Hoist Price : 178600.0 INR/Piece Minimum Order Quantity : 1 Power Source : Electric Lifting Speed : 58 m/min Sling Type : Other, Steel Wire Rope Usage : Industrial Lifting Voltage : 415V AC, 3 Phase Frequency : 50 Hz Rotating Speed : 1440 RPM Maximum Lifting Height : 6 m, Customizable Trolley : Motorized, Low Headroom Design Lift Speed : 7 m/min Capacity : 120 Ton Hook : Forged Steel Swivel Hook with Safety Latch Power : 215 kW Insulation Grade : Class F/H Surface Finish : Powder Coated, AntiCorrosion Maximum Lifting Weight : Up to 20 Ton
