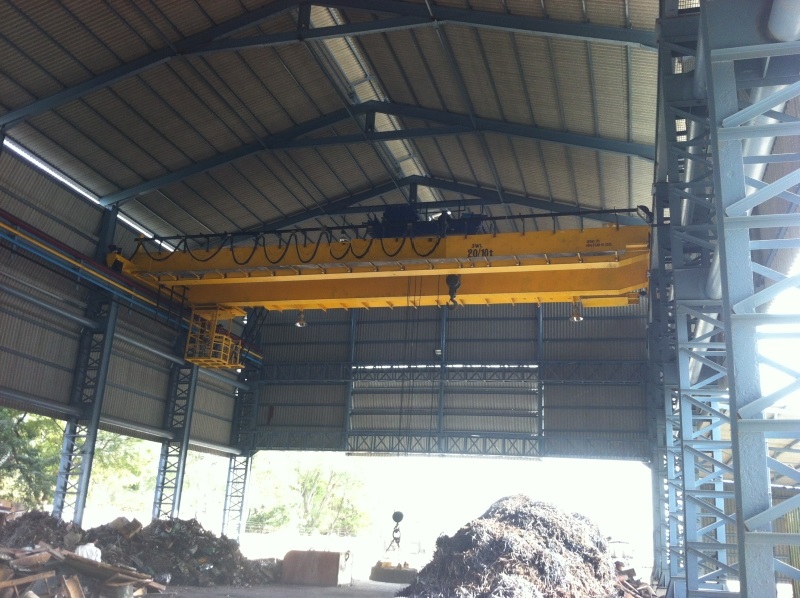

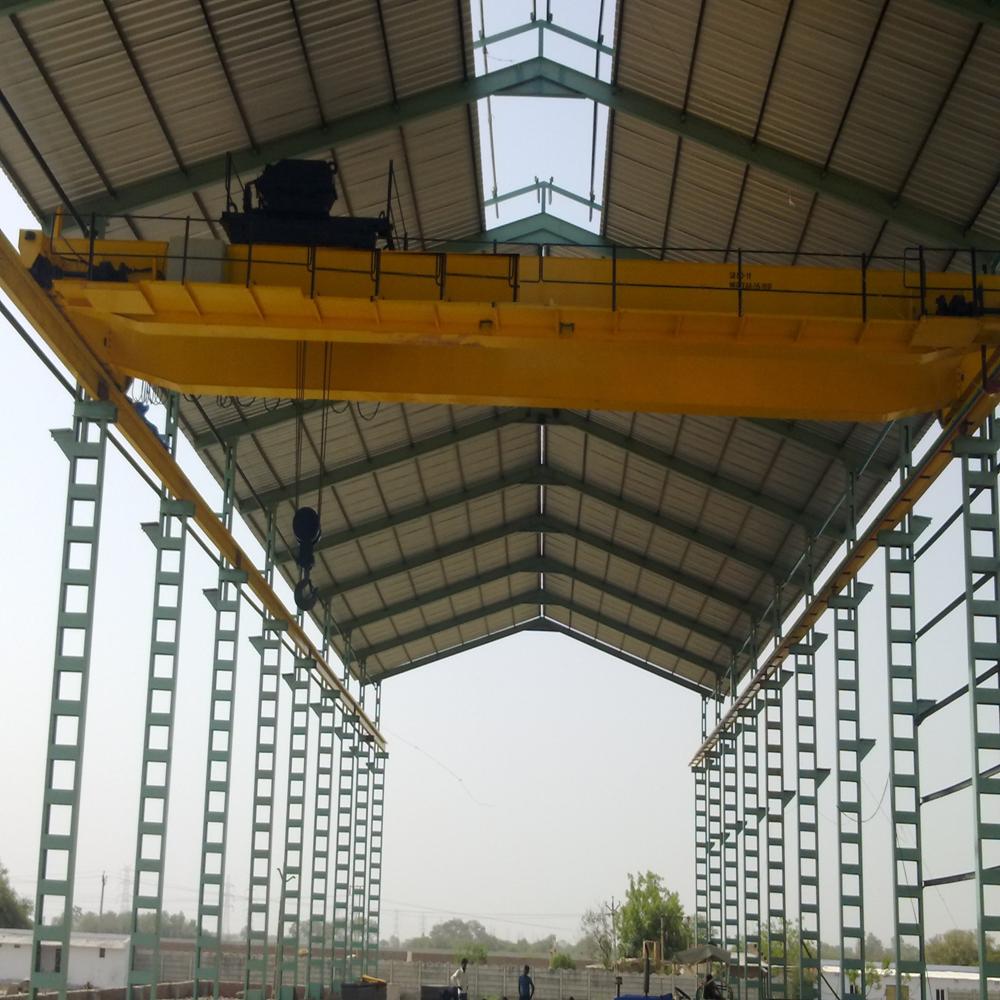

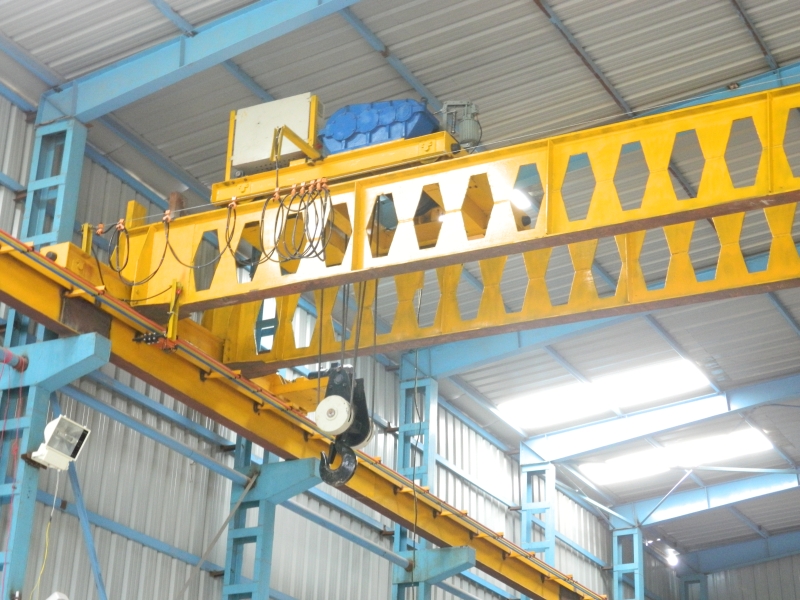

डबल गर्डर क्रेन

डबल गर्डर क्रेन मूल्य और मात्रा

• माप की इकाई यूनिट/यूनिट
• न्यूनतम आदेश मात्रा 1
• मूल्य की इकाई यूनिट/यूनिट

• Brakes Electro Hydraulic/Electro Magnetic
• Finishing Anti-corrosive paint
• Optional Features Variable frequency drive, wireless remote control, flameproof components
• Noise Level < 80 dB(A)
• Design Standard IS 3177 / IS 807 / IEC standards
• Beam Type Box or Welded I-Beam
• Safety Features Overload protection, anti-collision device, buffer stops
• Construction Material High-Grade Structural Steel
• Working Class ISO/FEM Class 2M to 4M
• Operating Temperature -20C to +55C
• Motor Type Squirrel Cage Induction Motors with brake
• Reduction Gear Helical/Spur type enclosed
• Duty Cycle Heavy/Continuous
• Power Supply 3 Phase, 415V, 50Hz AC
• Wheel Type Forged Steel Wheels

डबल गर्डर क्रेन उत्पाद की विशेषताएं

• स्पैन की लंबाई Up to 40 Meters (customizable)
• सामान उठाने की ऊंचाई Up to 25 Meters
• लोडिंग क्षमता 1 Ton to 100 Tons
• ट्रॉली ट्रैवल स्पीड 2-15 m/min
• पावर सोर्स Electric
• क्रेन ट्रैवलिंग स्पीड 5-20 m/min (variable as per requirement)
• उठाने की क्षमता 1-100 Tons
• क्रेन का कुल वजन Depends on configuration (typically varies with span & capacity)
• लिफ्टिंग टाइम Depends on lifting capacity and height
• रंग Yellow/Custom paint finish
• फ़ीचर High load capacity, Rugged construction, Precision engineered

• Brakes Electro Hydraulic/Electro Magnetic
• Finishing Anti-corrosive paint
• Optional Features Variable frequency drive, wireless remote control, flameproof components
• Noise Level < 80 dB(A)
• Design Standard IS 3177 / IS 807 / IEC standards
• Beam Type Box or Welded I-Beam
• Safety Features Overload protection, anti-collision device, buffer stops
• Construction Material High-Grade Structural Steel
• Working Class ISO/FEM Class 2M to 4M
• Operating Temperature -20C to +55C
• Motor Type Squirrel Cage Induction Motors with brake
• Reduction Gear Helical/Spur type enclosed
• Duty Cycle Heavy/Continuous
• Power Supply 3 Phase, 415V, 50Hz AC
• Wheel Type Forged Steel Wheels

डबल गर्डर क्रेन व्यापार सूचना

• आपूर्ति की क्षमता 10 प्रति वर्ष
• डिलीवरी का समय 1 महीने
