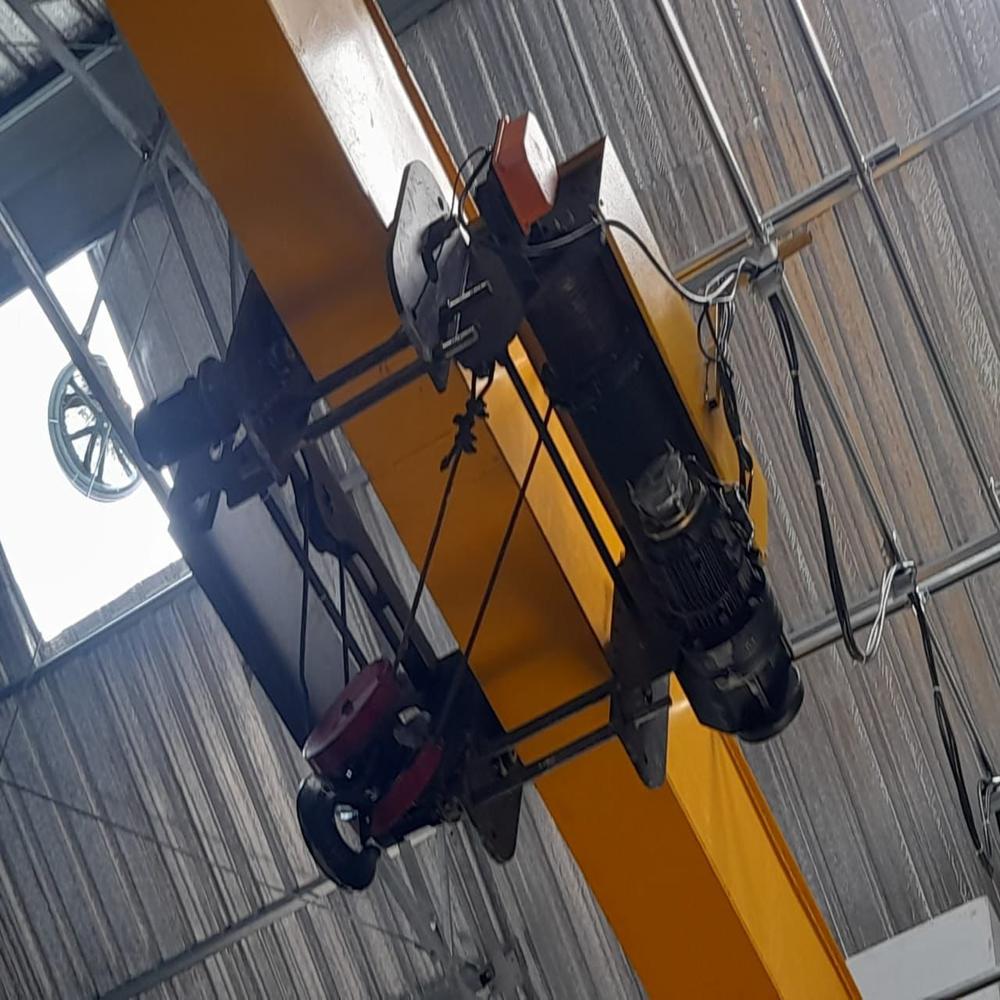

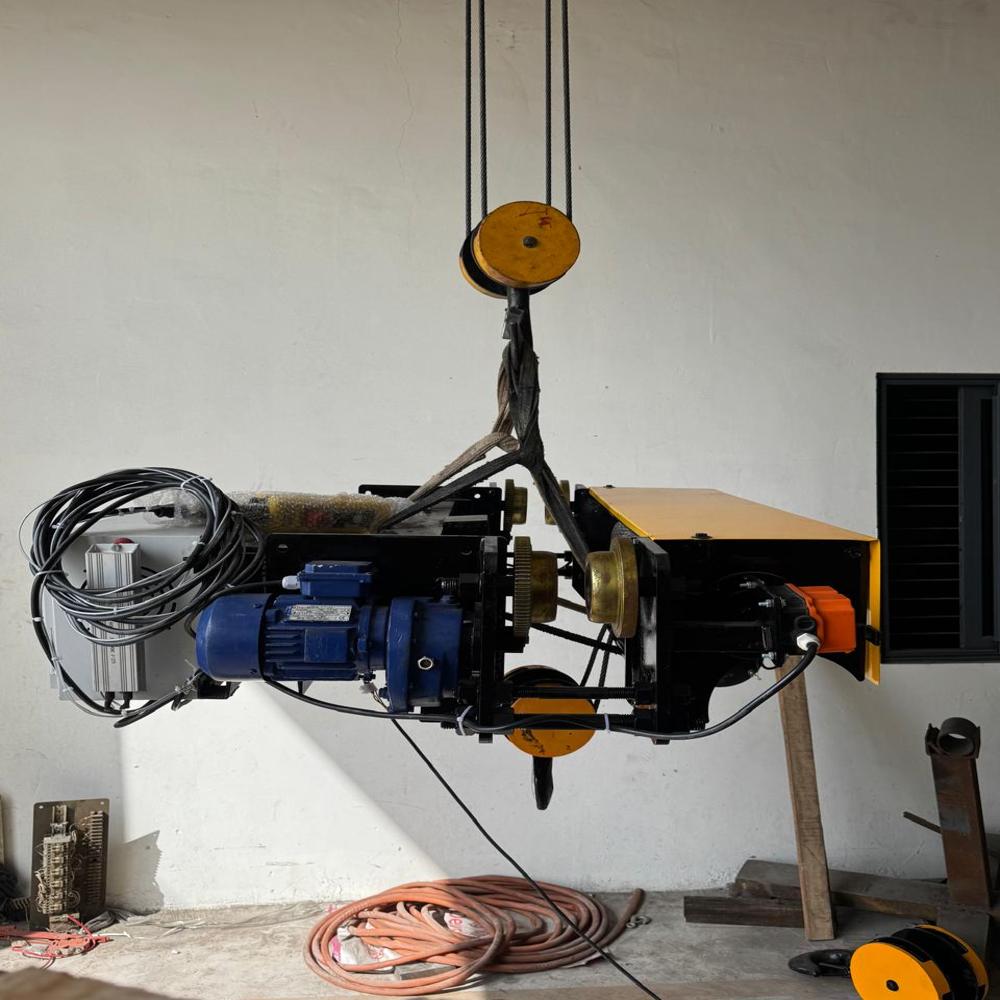

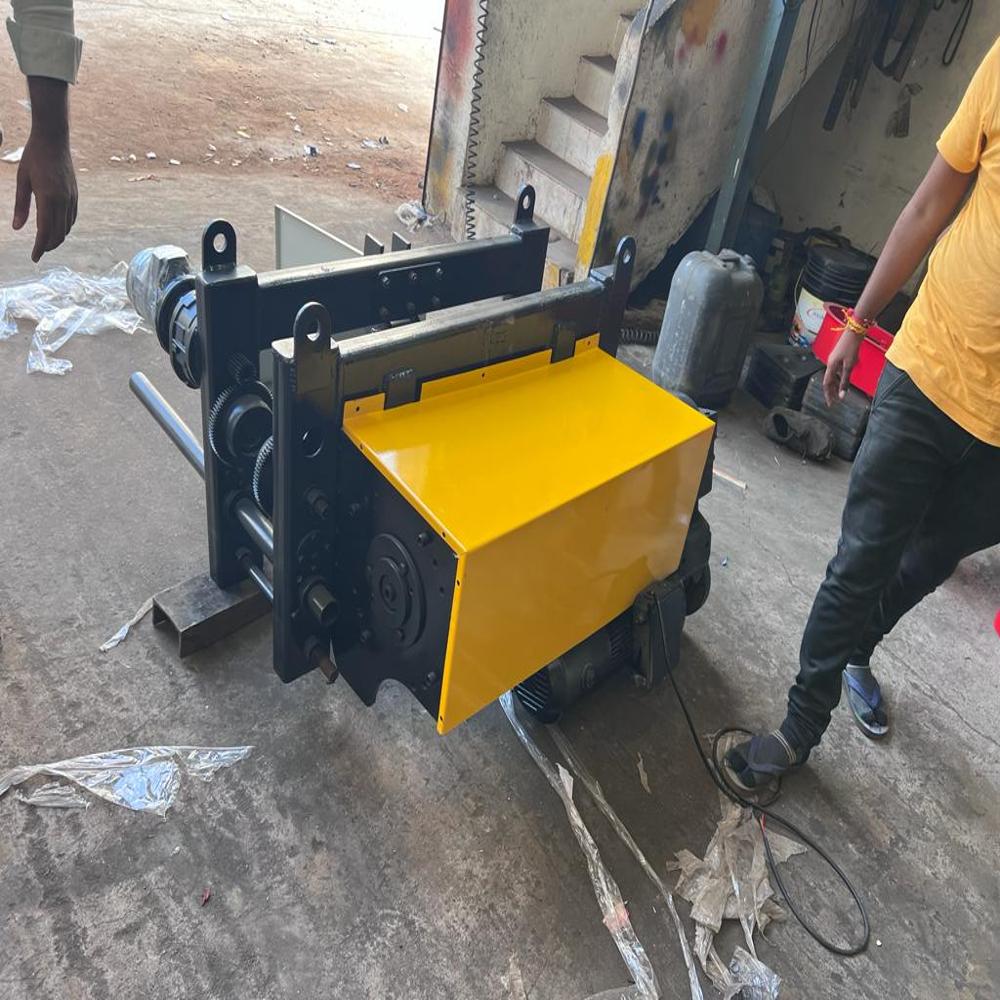

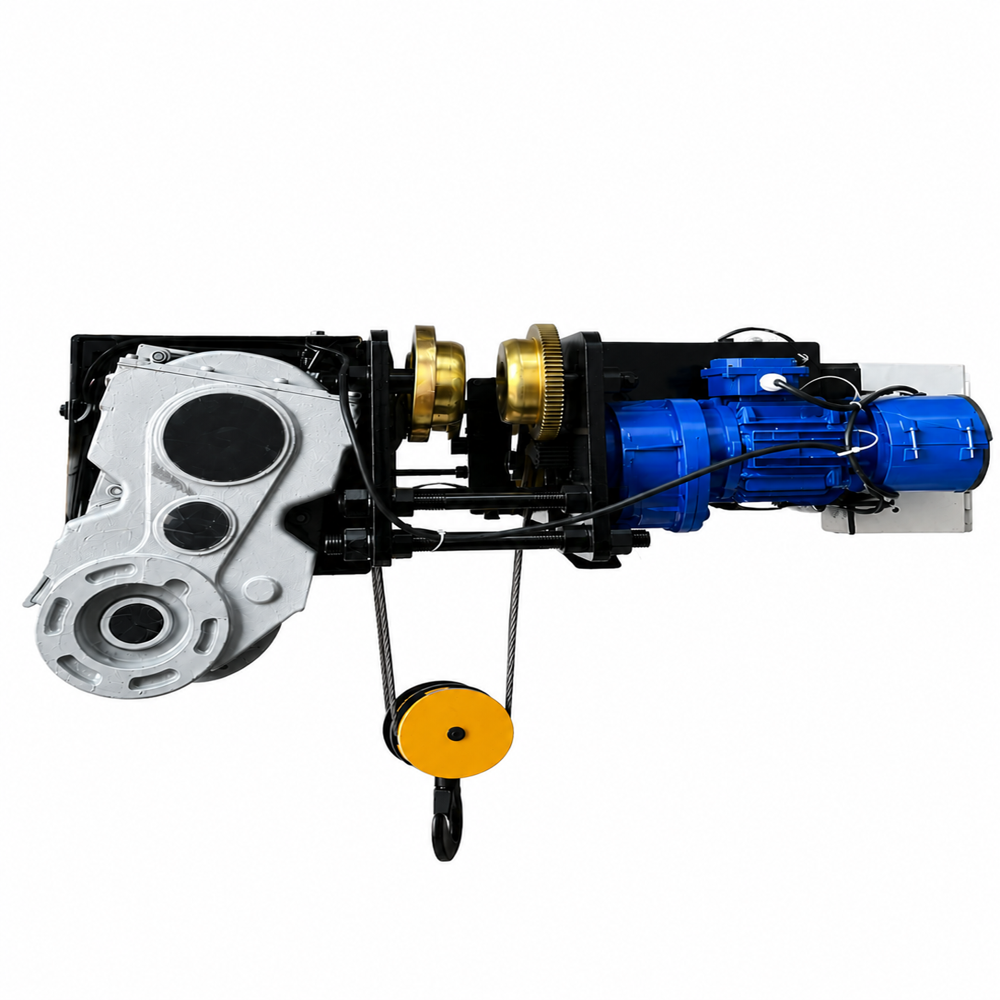

Low Headroom Wire Rope Hoist

Name: Low Headroom Wire Rope Hoist
Brand: ARTECH ENGINEERS
Price: 178600.0 INR
Availability: InStock

178600.0 INR/Piece

Get a Price/Quote

Product Details:

Frequency 50 Hz
Hook Forged Steel Swivel Hook with Safety Latch
Surface Finish Powder Coated, Anti-Corrosion
Lifting Speed 5-8 m/min
Usage Industrial Lifting
Power Source Electric
Sling Type Steel Wire Rope
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Low Headroom Wire Rope Hoist Price And Quantity

Minimum Order Quantity 1 Piece
Price 178600.0 INR/Piece

Low Headroom Wire Rope Hoist Product Specifications

Trolley Motorized, Low Headroom Design
Power 2-15 kW
Sling Type Steel Wire Rope
Maximum Lifting Height 6 m, Customizable
Voltage 415V AC, 3 Phase
Maximum Lifting Weight Up to 20 Ton
Rotating Speed 1440 RPM
Frequency 50 Hz
Insulation Grade Class F/H
Power Source Electric
Lifting Speed 5-8 m/min
Capacity 1-20 Ton
Lift Speed 7 m/min
Surface Finish Powder Coated, Anti-Corrosion
Usage Industrial Lifting
Hook Forged Steel Swivel Hook with Safety Latch

Overload Protection Included
Protection Class IP54, IP55
Limit Switches Top and Bottom Position Provided
Control System Pendant Control/Remote Control Option
Hoist Frame Material Mild Steel with Welded Structure
Duty Class M5/M6 (IS 3938, FEM)
Rope Drum Material High-tensile steel, Grooved
Trolley Wheel Material Forged/Alloy Steel with Ball Bearing
Wire Rope Diameter 8 mm to 32 mm (Depending on model)
Noise Level 85 dB
Braking System Electromagnetic Disc/Fail-Safe Brake
Working Temperature -20C to +55C

Product Description

Experience a stellar bargain with our Low Headroom Wire Rope Hoist, meticulously designed for prodigious lifting performance in tight spaces. Redeem a top-tier industrial tool featuring pendant or remote control options, overload protection, and robust limit switches for maximum safety. The grooved, high-tensile steel drum accommodates wire ropes from 8 mm to 32 mm, while its motorized trolley, electromagnetic fail-safe brakes, and forged steel hooks ensure a pro-level operation every time. Pick yours and elevate your operation's efficiency - custom capacities up to 20 tons and a variety of models available!

Low Headroom Wire Rope Hoist: Application & Advantage

Optimally designed for industrial lifting, the Low Headroom Wire Rope Hoist offers exceptional performance on diverse surfaces, especially where space constraints exist. Its low-profile configuration ensures suitability for warehouses, factories, and maintenance areas. This stellar system provides reliable vertical lifting, featuring anti-corrosion finishes and electromagnetic brakes for safety. Prodigious advantages such as precise control, high-duty cycles, and smooth movement make it a top-tier solution for continuous or heavy-load applications.

Payment Terms, Packaging & Sample Policy for Low Headroom Hoists

We offer flexible payment terms tailored for both domestic and international markets. Shipments are securely packaged using robust materials to prevent damage in transit, ensuring arrival in stellar condition. For sample requests, a nominal charge applies that can be adjusted upon order confirmation. Our sample policy accommodates professional evaluation before bulk purchase, while swift order processing guarantees you can redeem your hoist quickly.

FAQ's of Low Headroom Wire Rope Hoist:

Q: How does the overload protection system work in the Low Headroom Wire Rope Hoist?

A: The overload protection system automatically restricts operations if the load exceeds the hoist's rated capacity. This prodigious safety feature safeguards both the equipment and operators, providing confidence during use.

Q: What are the primary benefits of choosing a low headroom wire rope hoist for industrial lifting?

A: Its compact, low-profile design makes it ideal for applications with limited vertical clearance, while its high-tensile components and fail-safe braking offer reliable, top-tier safety and performance in demanding environments.

Q: Where can I use this hoist system?

A: This hoist is suitable for warehouses, manufacturing facilities, shipyards, and maintenance shops. Its robust design, customizable capacities, and anti-corrosive finish make it adaptable to myriad industrial and commercial lifting surface applications.

Q: What customization options are available when I pick my Low Headroom Wire Rope Hoist?

A: Customers can choose wire rope diameter, lifting capacity (up to 20 tons), rope drum material, lifting speed, control type (pendant or remote), and insulation grade. Model specifications can be adjusted to meet special requirements.

Q: How is the hoist shipped and what are the packaging details?

A: Shipments are securely packaged using durable materials and export-standard practices, suitable for both domestic and international markets. Each unit is carefully inspected before dispatch to ensure prodigious quality upon delivery.
